Russian processors
Irtysh
Performance and security
Irtysh is a family of high-performance Russian processors. Designed for mission-critical applications where reliability, cost-effectiveness, and manufacturing availability are essential. The processor family is built on the LoongArch architecture. A full license for architectural development and enhancement allows to modify and refine to the crystal topology.
Advantages of the Irtysh Processors:
- Own trusted boot environment;
- Absence of undeclared capabilities;
- High energy efficiency;
- Stable production and supply;
- A community of engineers and developers with a well-established ecosystem;
- Own design center for developing domestic IP-blocks.

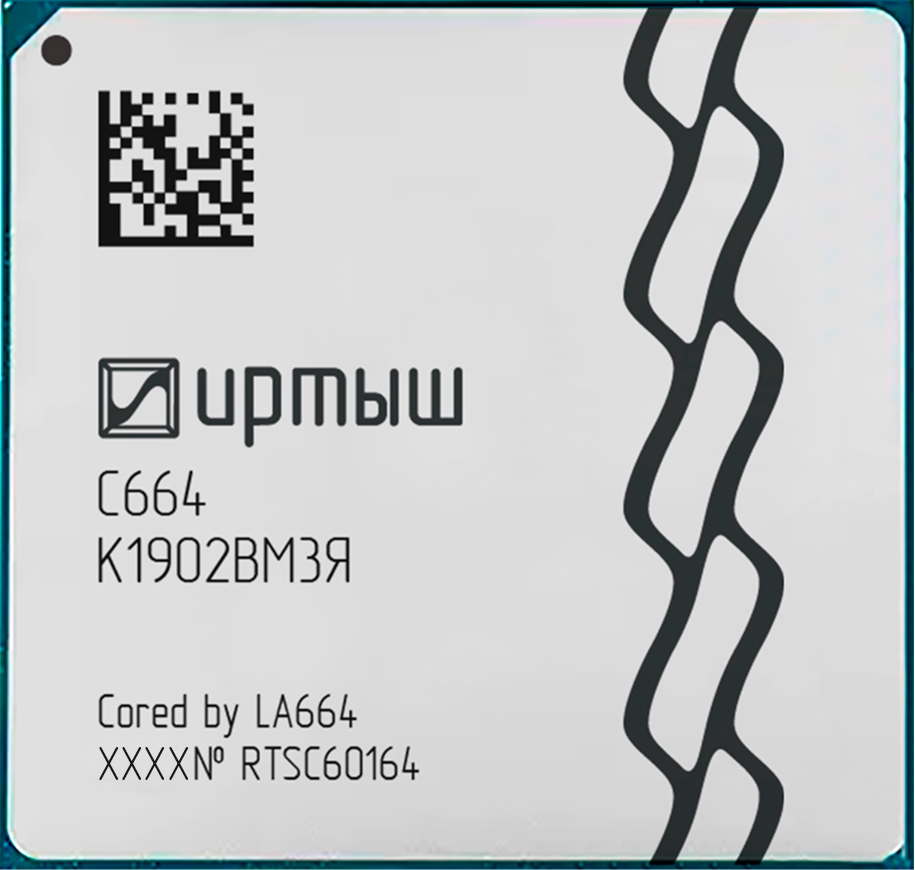

Server processors Irtysh
The first production line of processors:
- Irtysh C616 — 16 cores/32 threads;
- Irtysh C664 — 64 cores/128 threads.
- Irtysh С664 — 64 cores/128 threads.
Technical specifications of the Irtysh server processors
| Parameter/Model Processor | Irtysh С616 | Irtysh С632 | Irtysh С664 |
| Peak clock frequency | 2.2GHz | 2.1GHz | 2.0GHz |
| Performance | 844.8GFlops@2.2GHz | 1612.8GFlops@2.1GHz | 3072GFlops@2.0GHz |
| Number of cores | 16 | 32 | 64 |
| Number of threads | 32 | 64 | 128 |
| Number of chips on wafer | 1 | 2 | 4 |
| Memory | 4 channels 72-bit DDR4-3200 | 8 channels 72-bit DDR4-3200 | 8 channels 72-bit DDR4-3200 |
| Interprocessor bus | LCL, PCIe, multiplexing | LCL, PCIe, multiplexing | LCL, PCIe, multiplexing |
| Typical power consumption | 100-120W, up to 195W | 180-200W | 250-300W |
Irtysh А68SV System-on-Chip (SoC)
| Characteristic | Description | Characteristic | Description |
| Basic frequency | До 2.2 GHz (max) | Memory | Up to 32Gb DDR4/LPDDR4 |
| Number of cores | 8 physical cores | Ethernet | 2 x 1 Gb/с |
| Performance NPU | 6 TOPS (INT8) | Interfaces | 4 CAN-FD 8 UART |
| Typical power consumption | 15W | Temperature | -40 °C … +85 °C (corpus) |
Application areas
Cloud & Data Centers
Sovereign server solutions with full data control
High-performance computing
Efficiency for scientific and engineering computations, big data processing
Government sector & Law Enforcement
Secure control systems, data encryption, secure servers
Industry & Energy
Automated control systems
Banking & Finance
Payment systems, transaction processing, cybersecurity protection
Solutions
Structure of a Russian server solution based on the Irtysh processor:

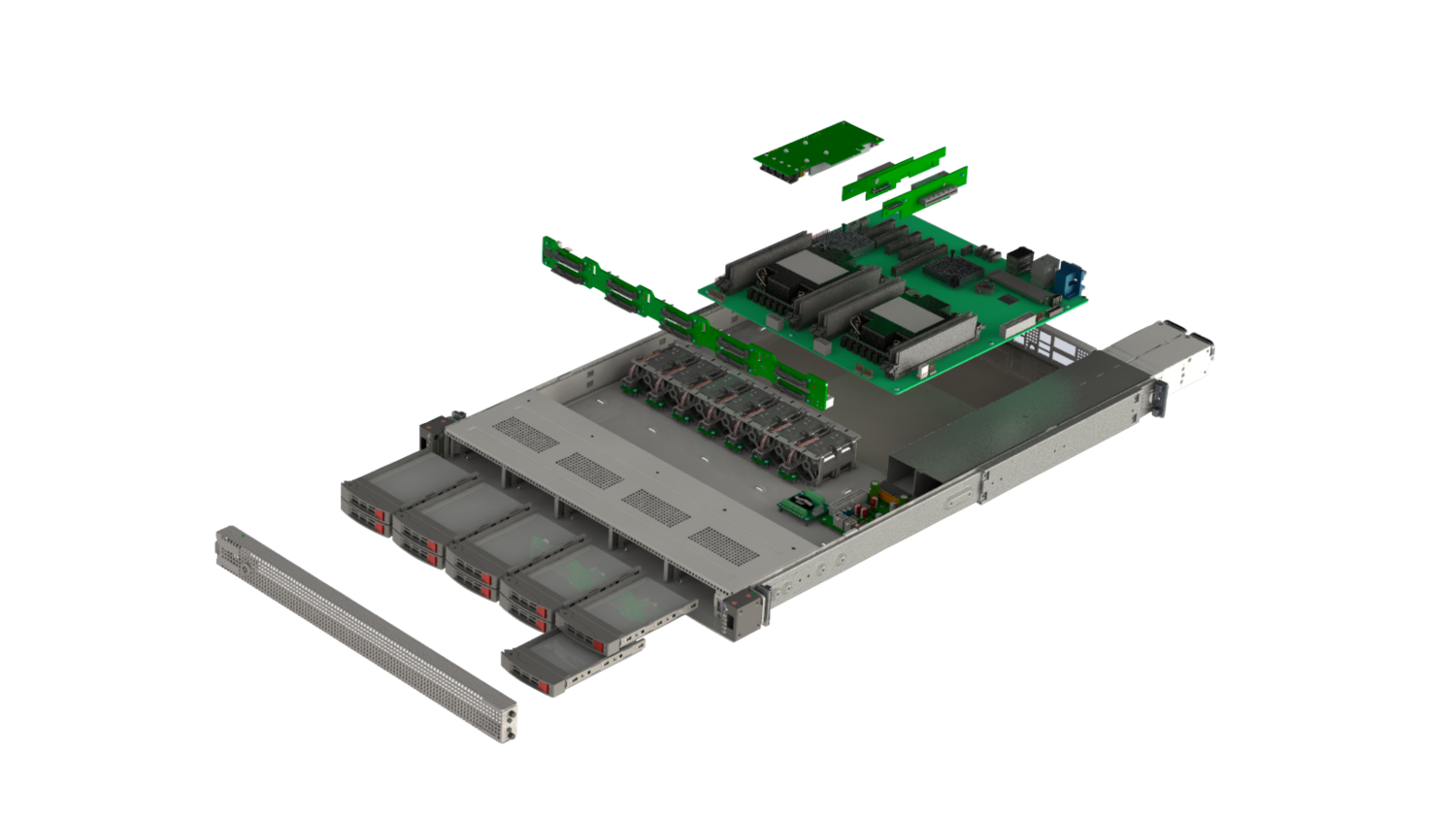

Assembly drawing: hardware platform of the BITBLAZE Sirius 4100 data storage system.
Chassis, drive bays, backplane, adapter board – designed and manufactured by Promobit company.
Ready-made solutions from partners of Tramplin Electronics:

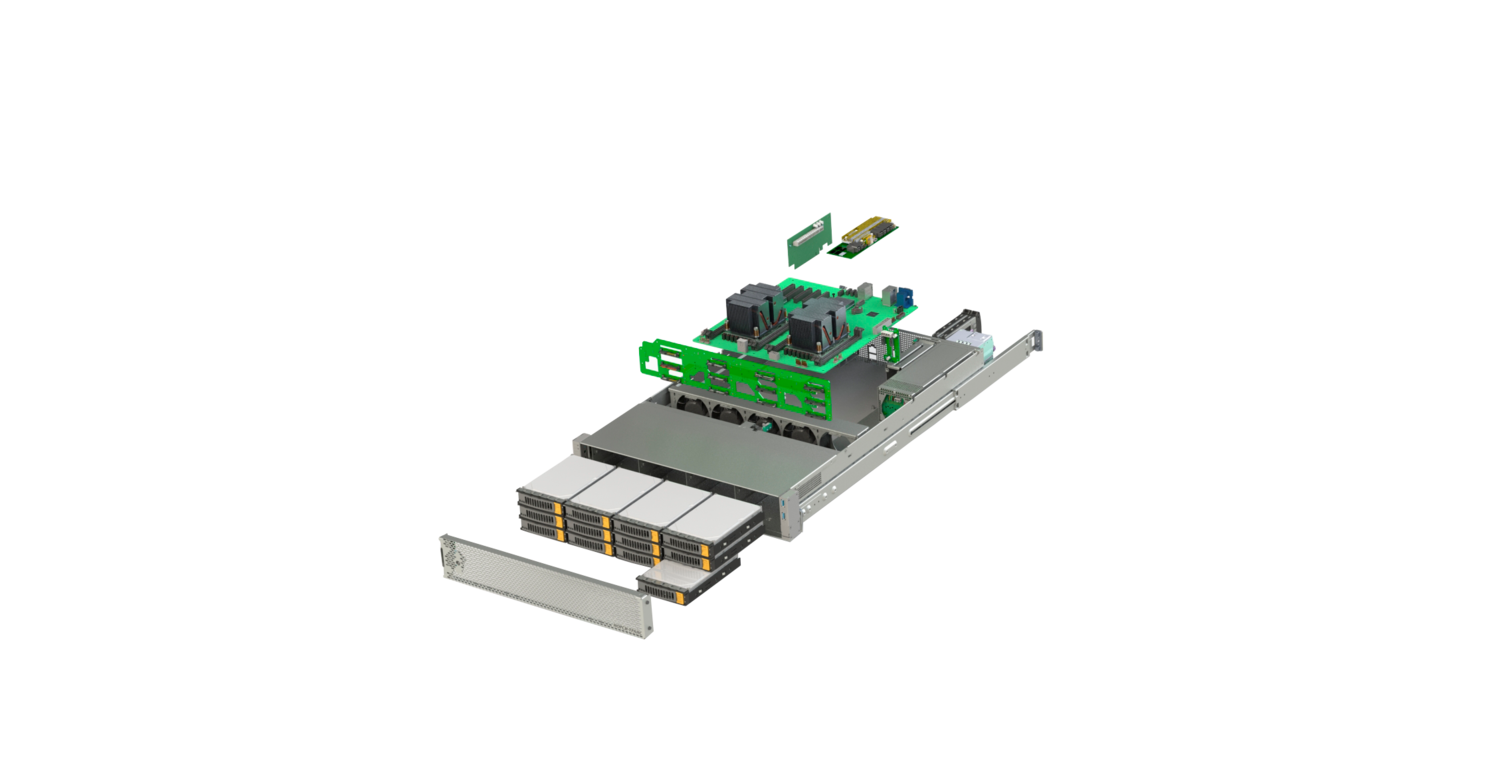

Nika 466533.422
Universal server 1U «Norsi-Dragon» 10SFF
Nika 466533.423
Universal server 2U «Norsi-Dragon» 12LFF

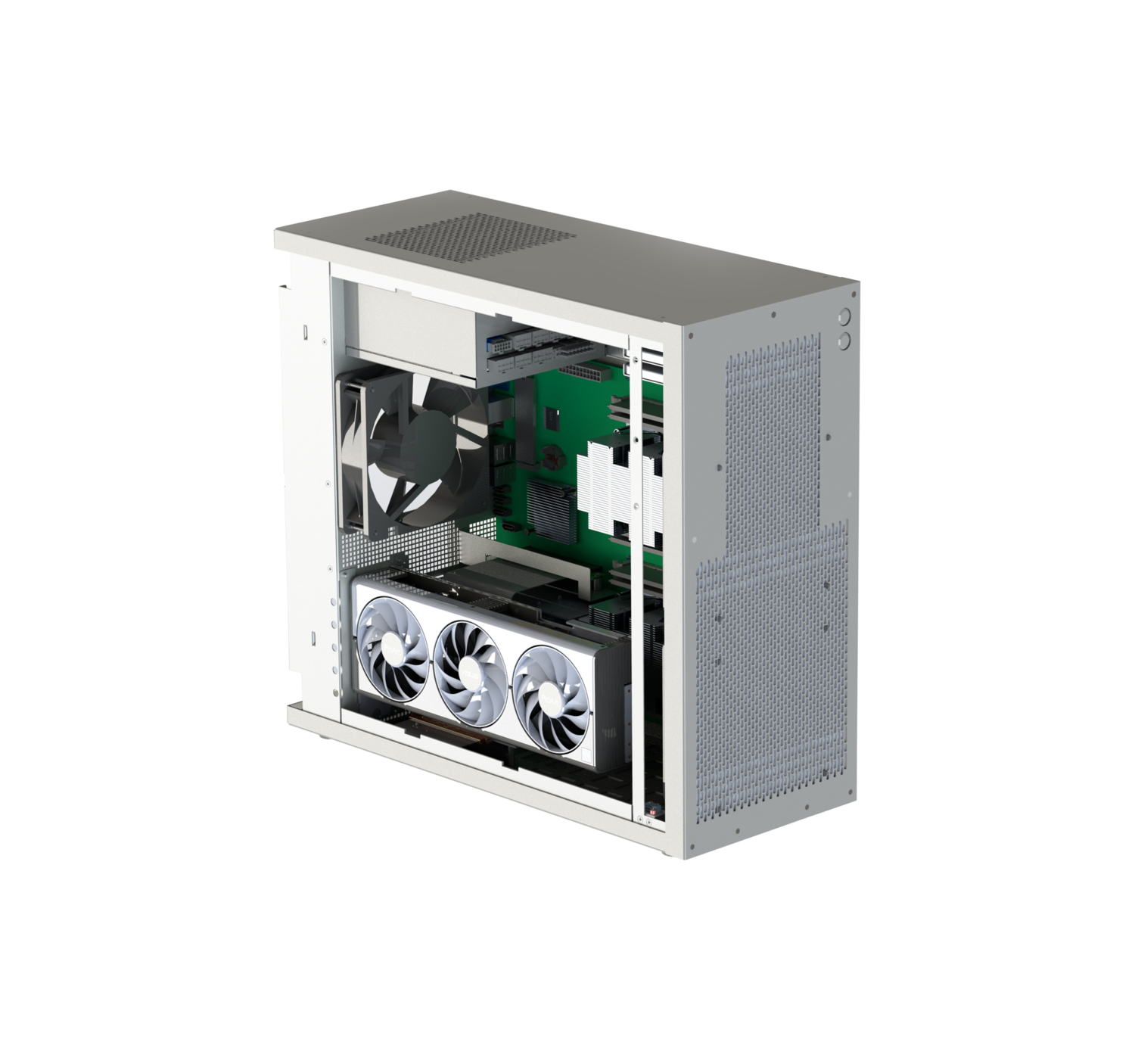

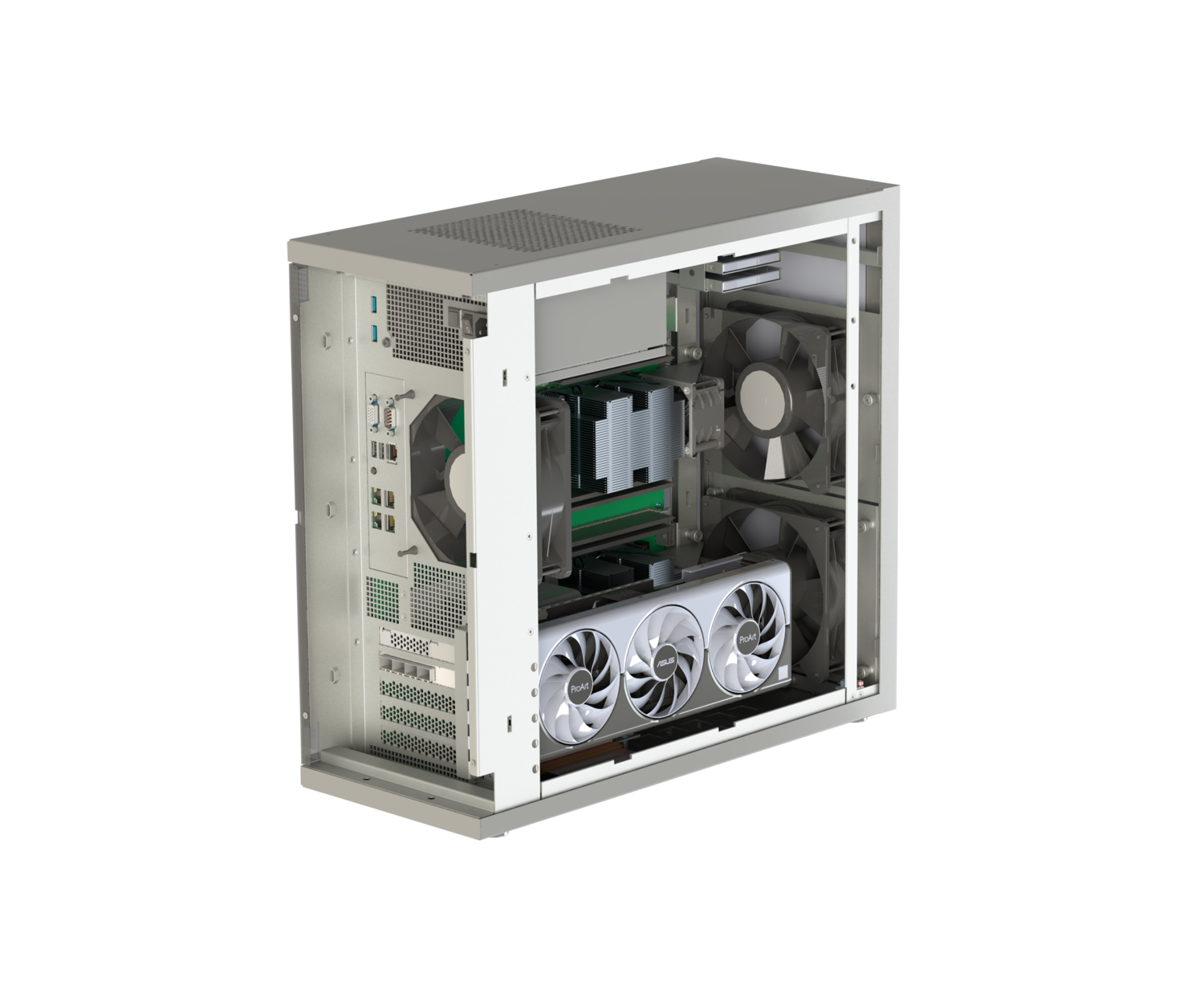

Nika 466533.506
System unit based on the NT Dragon 2С-3С5 «Manul-D» motherboard
Cooperation with universities
Tramplin Electronics is a contributor to the LoongArch architecture in Russia. We invite university departments and faculty members from technical institutions to collaborate with us in working with domestic cloud platforms based on the Irtysh processors.
We are developing cooperation across the following areas:
Educational Process
Laboratory work and courses:
• Computer architecture and parallel computing;
• Operating systems and virtualization;
• Cloud technologies and distributed systems;
• Access to real hardware – students work not with emulators but with existing infrastructure (16-core Irtysh processors, 2.5 GHz, LA664, hardware virtualization).
About our company
Tramplin Electronics is a Russian technology company focused on strategic investments in microelectronics and software development. It is a regional partner, and it enhances competencies based on LoonArch in Russia.
We create technological sovereignty through competitive and secure computational platforms.
The goal of "Tramplin Electronics" is to form trusted domestic IT solutions by bringing Russian companies together. We are ready to become a growth point for competencies and a foundation for forming the LoongArch ecosystem in Russia.
Feedback and technical support
Contact us for more information
demo_irtysh@tramplin.group
