Irtysh — is a family of high-performance Russian processors. Designed for mission-critical applications where reliability, cost-effectiveness, and manufacturing availability are essential. The processor family is built on the LoongArch architecture. A full license for architectural development and enhancement allows to modify and refine to the crystal topology.
Advantages of the Irtysh Processors:
The first production line of processors:

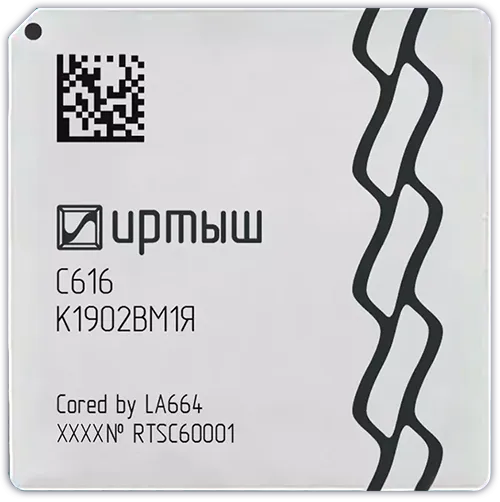

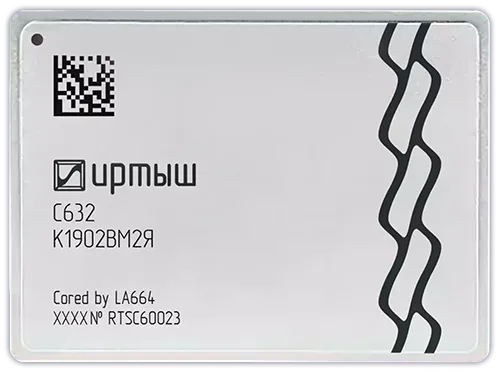

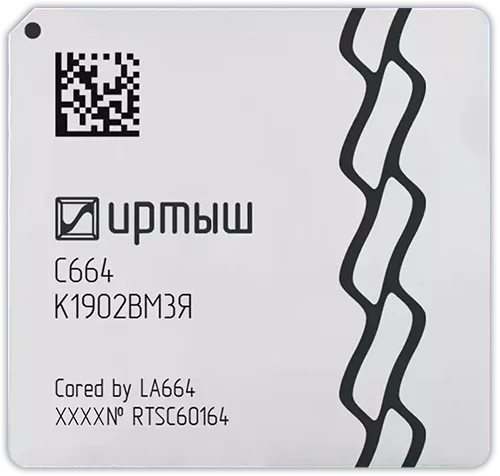

| Parameter/Model Processor | Irtysh С616 | Irtysh С632 | Irtysh С664 |
|---|---|---|---|
| Peak clock frequency | 2.2GHz | 2.1GHz | 2.0GHz |
| Performance | 844.8GFlops@2.2GHz | 1612.8GFlops@2.1GHz | 3072GFlops@2.0GHz |
| Number of cores | 16 | 32 | 64 |
| Number of threads | 32 | 64 | 128 |
| Number of chips on wafer | 1 | 2 | 4 |
| Memory | 4 channels 72-bit DDR4-3200 | 8 channels 72-bit DDR4-3200 | 8 channels 72-bit DDR4-3200 |
| Interprocessor bus | LCL, PCIe, multiplexing | LCL, PCIe, multiplexing | LCL, PCIe, multiplexing |
| Typical power consumption | 100-120W, up to 195W | 180-200W | 250-300W |
| Characteristic | Description | Characteristic | Description |
|---|---|---|---|
| Basic frequency | До 2.2 GHz (max) | Memory | Up to 32Gb DDR4/LPDDR4 |
| Number of cores | 8 physical cores | Ethernet | 2 x 1 Gb/с |
| Performance NPU | 6 TOPS (INT8) | Interfaces | 4 CAN-FD 8 UART |
| Typical power consumption | 15W | Temperature | -40 °C … +85 °C (corpus) |
Sovereign server solutions with full data control
Efficiency for scientific and engineering computations, big data processing
Secure control systems, data encryption, secure servers
Automated control systems
Payment systems, transaction processing, cybersecurity protection
Structure of a Russian server solution based on the Irtysh processor:
Assembly drawing:
Ready-made solutions from partners of Tramplin Electronics:

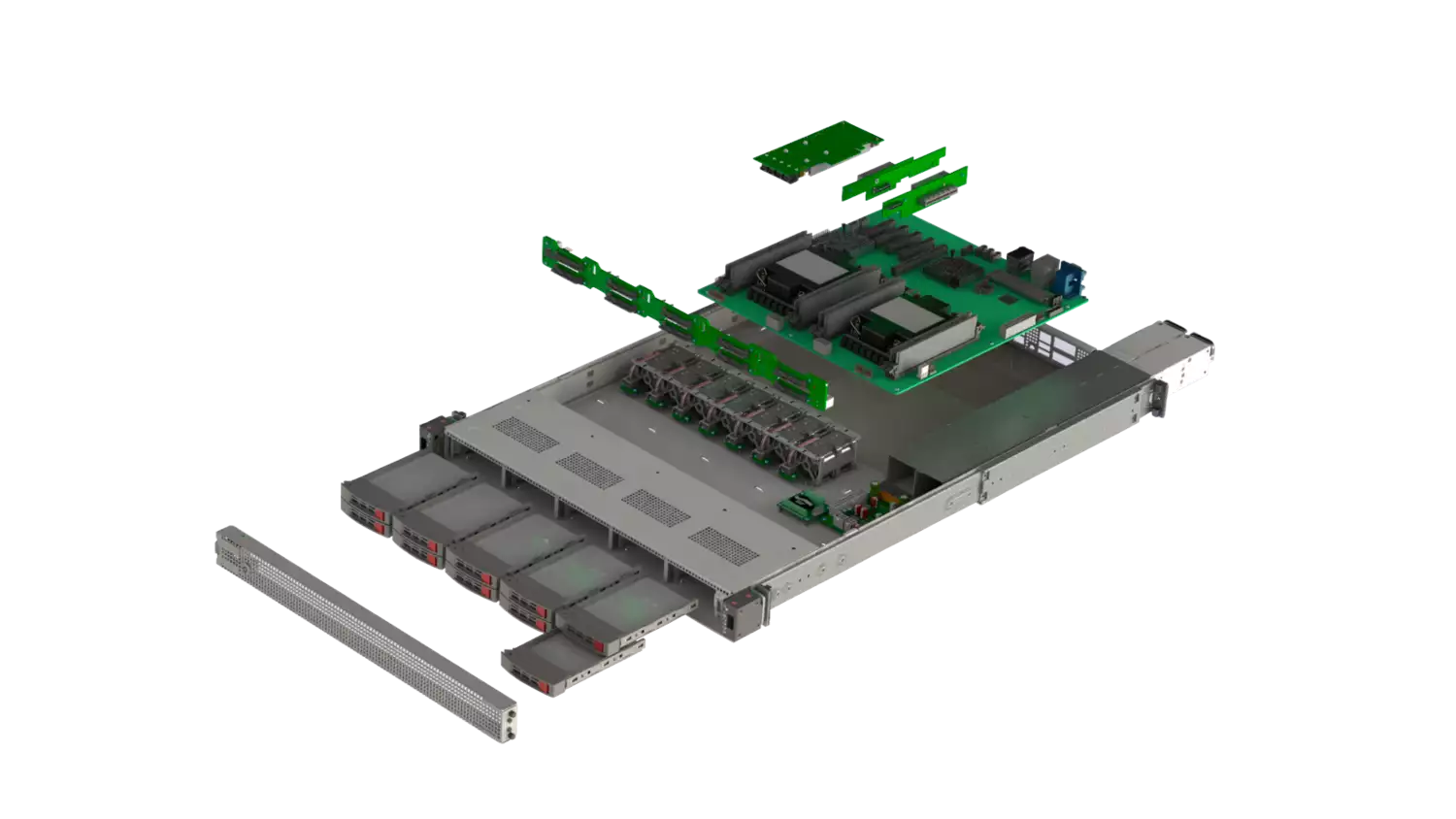

Universal server 1U «Norsi-Dragon» 10SFF

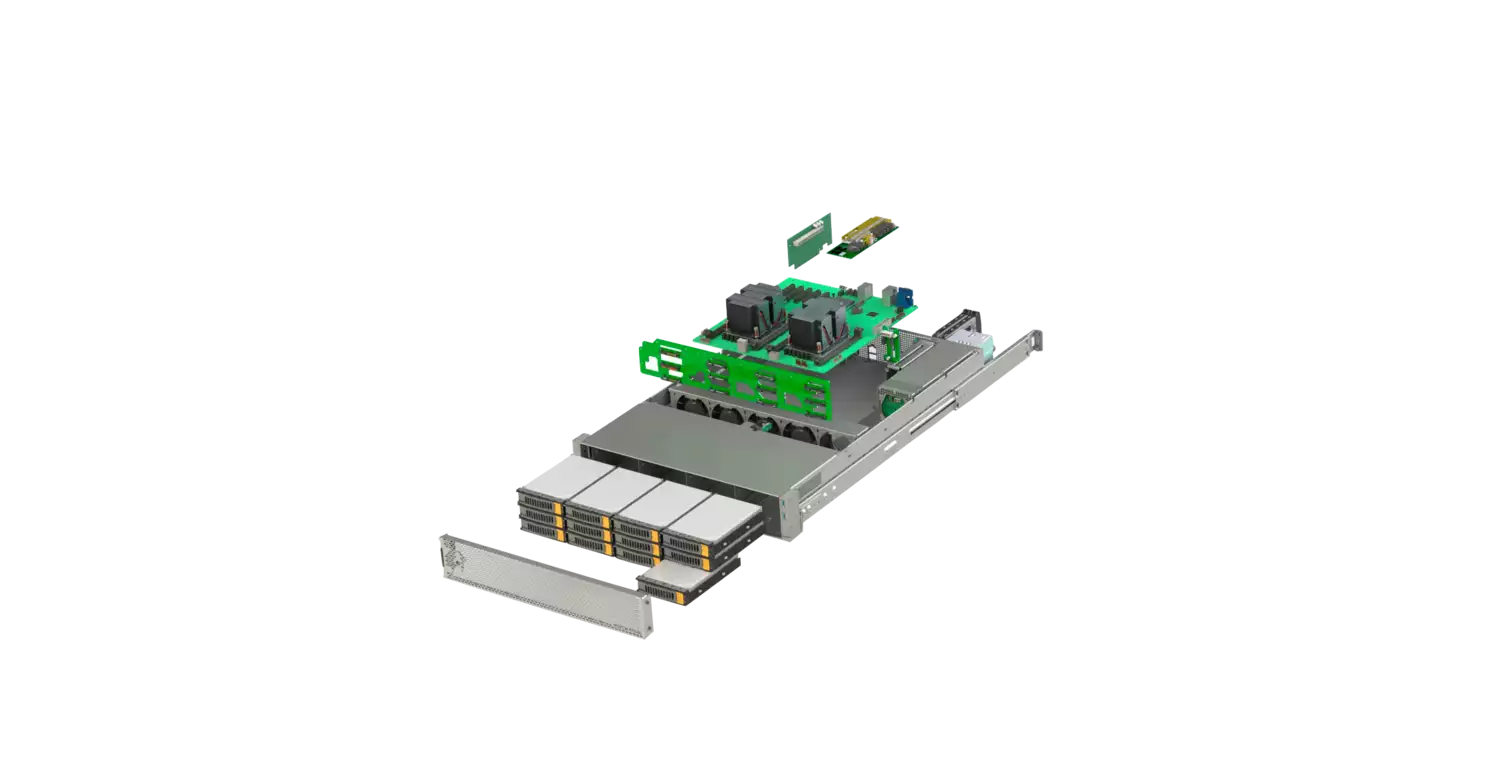

Universal server 2U «Norsi-Dragon» 12LFF

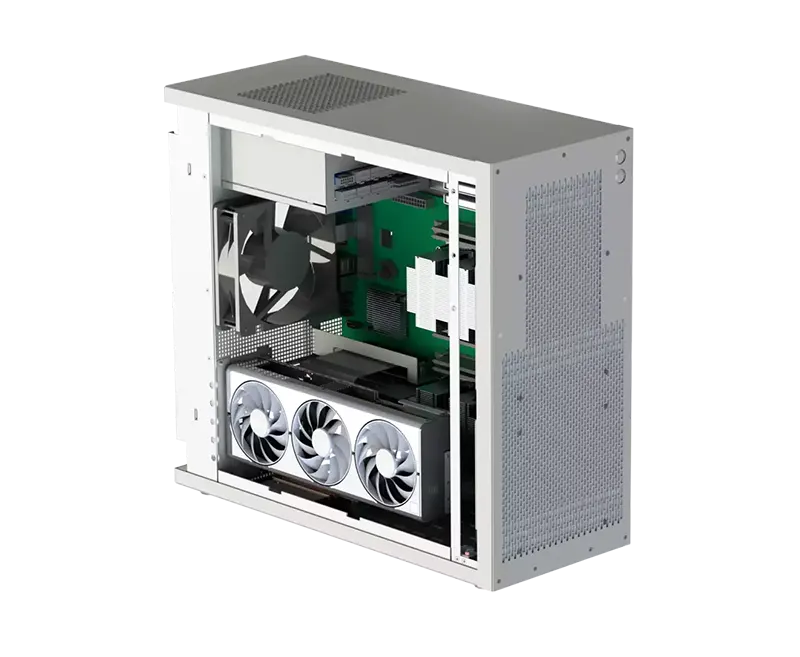

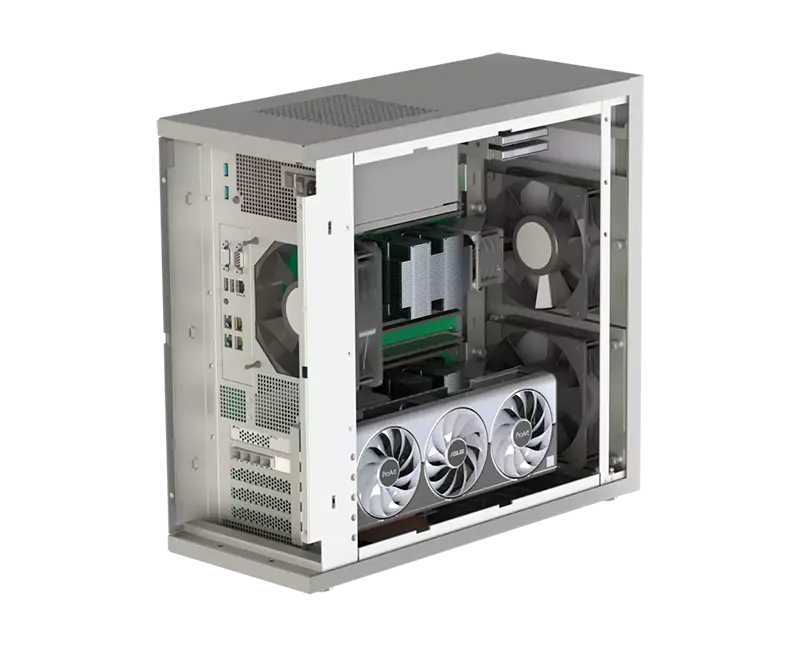

System unit based on the NT Dragon 2С-3С5 «Manul-D» motherboard
Tramplin Electronics is a contributor to the LoongArch architecture in Russia. We invite university departments and faculty members from technical institutions to collaborate with us in working with domestic cloud platforms based on the Irtysh processors.
We are developing cooperation across the following areas:
Laboratory work and courses:
Computing resources for experiments in fields:
Tramplin Electronics is a Russian technology company focused on strategic investments in microelectronics and software development. It is a regional partner, and it enhances competencies based on LoonArch in Russia.
We create technological sovereignty through competitive and secure computational platforms.
The goal of "Tramplin Electronics" is to form trusted domestic IT solutions by bringing Russian companies together. We are ready to become a growth point for competencies and a foundation for forming the LoongArch ecosystem in Russia.
